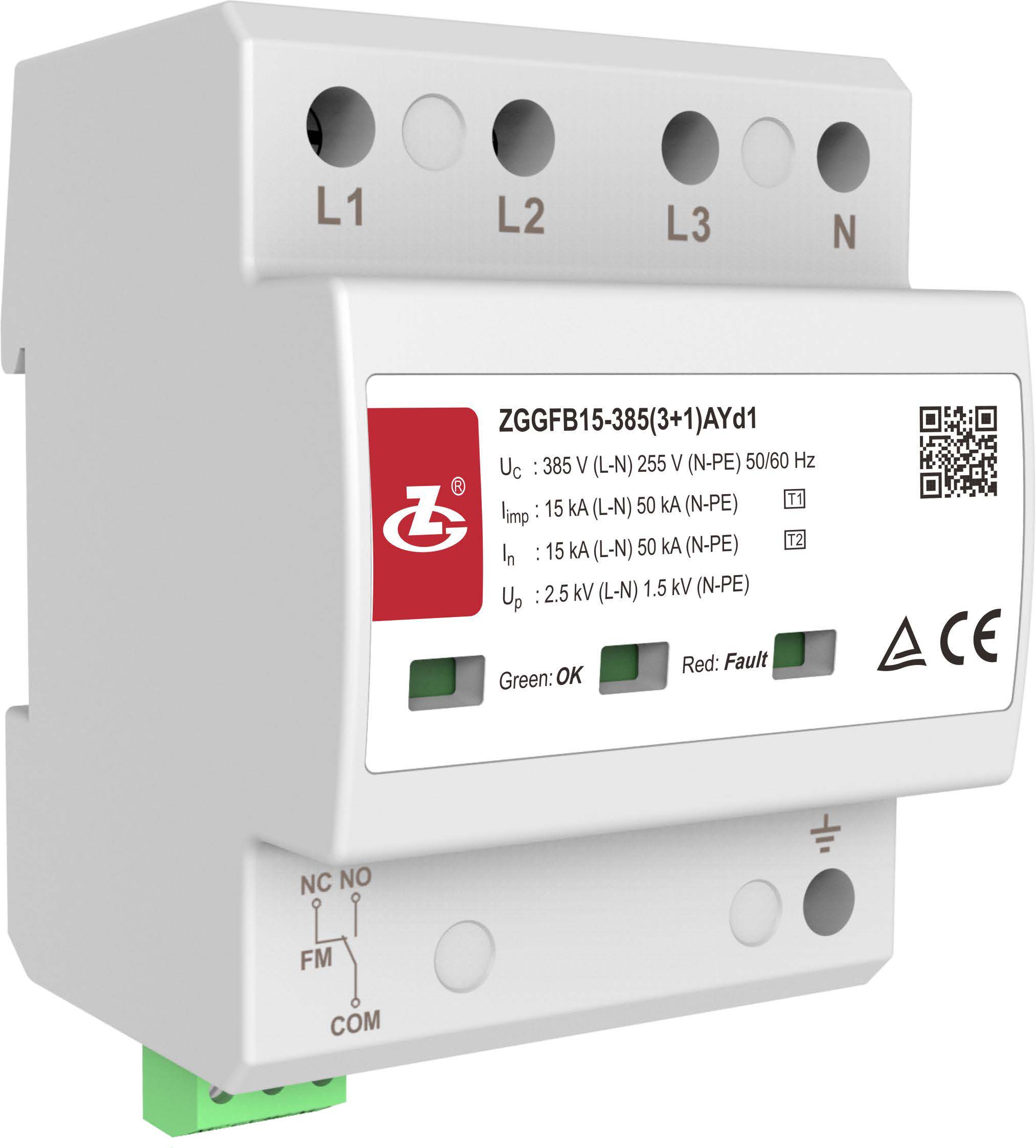

ZGGFB15-385AYd1

General
Modular Power Supply SPD employs multi-layer discharge technology. It is applied in the primary power distribution system to protect equipment against direct lightning strikes and induced surges.

Features
1. High discharge capacity, low residual voltage, and strong follow current interrupt capability.
2. Standard din rail installation.
3. Equipped with disconnecter, local status indicator and remote signaling interface.

Standards Compliance
IEC 61643-11: 2011; EN 61643-11: 2012

Technical Data
Operating Environment
Temperature range
–40°C to 85°C
Relative humidity range
5% to 95% (+25°C)
Altitude range
–500 m to +3000 m
Technical Parameters
Model
ZGGFB15-385(1+1)AYd1
ZGGFB15-385(3+1)AYd1
SPD According to IEC 61643-11
Class I + Class II
SPD According to EN 61643-11
Type 1 + Type 2
Number of ports
One port
Connection mode
In parallel
Grid voltage of the protected system U0 (L-N phase voltage)
230 V 50/60 Hz
Maximum continuous operating voltage (Uc)
385 V (L-N), 255 V (N-PE) 50/60 Hz
Type of low voltage (LV) system
TN, TT
Modes of protection
L-N, N-PE
Nominal discharge current In (8/20 μs)
15 kA (L-N), 30 kA (N-PE)
15 kA (L-N), 50 kA (N-PE)
Impulse discharge current
Iimp (10/350 μs)
15 kA (L-N), 30 kA (N-PE)
15 kA (L-N), 50 kA (N-PE)
Quantity of electric charge (Q)
7.5 As (L-N), 15 As (N-PE)
7.5 As (L-N), 25 As (N-PE)
Specific energy (W/R)
56.25 kJ/Ω (L-N), 225 kJ/Ω (N-PE)
56.25 kJ/Ω (L-N), 625 kJ/Ω (N-PE)
Voltage protection level (Up)
2.5 kV (L-N), 1.5 kV (N-PE)
Measured limiting voltage UL( at Iimp)
≤1.0 kV (after 10 μs) (L-N)
Follow current interrupt rating (Ifi)
3 kA (at 385 V a.c.) (L-N); 0.1 kA (at 255 V a.c.) (N-PE)
Short-circuit current rating ISCCR
3 kA (L-N)
Impulse withstand capability
(10/350 μs)
7.5 kA (10 times, 5-minute interval) (L-N)
Response time (tA)
≤ 100 ns
Leakage current
≤ 1 mA
Residual current (IPE)
≤ 1 mA
Transient overvoltage (TOV)
UT =442 V, tT =120 min (L-N); UT =1200 V, tT =200 ms (N-PE)
Application scenario
Indoor
Installation method
35 mm DIN rail (Type TH 35, according to IEC/EN 60715)
Status Indication
Green: normal; Red: fault
The cross-sectional area of the wire that can be clamped by the power supply terminal
6 mm2 to 25 mm2 multi-core wire
Torque: Terminal/Remote signaling interface
2.5 N·m/0.25 N·m
Remote signaling parameters
AC: 250 V/0.5 A, 125 V/1 A; DC: 30 V/0.1 A
The cross-sectional area of the wire that can be clamped by the remote signaling interface
0.5 mm2 to 1.5 mm2
Storage period
2 years
Guarantee period
2 years

Circuit Diagram

ZGGFB15-385(1+1)AYd1


ZGGFB15-385(3+1)AYd1


Configuration

ZGGFB15-385(1+1)AYd1


ZGGFB15-385(3+1)AYd1
