ZGG40-275/320/385/440(3+1)hs
General
This series is made up of three MOV power modules, one GDT power module and a base, used for secondary protection of L-N, N-PE respectively. It is applied in low voltage AC power distribution system, and connected between the AC power supply and the equipment in parallel. It can prevent the equipment from the impulse surge and the transient overvoltage caused by the outside environment (such as lightning, EMI, etc.) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance load, etc.) .

Features
1. Anti-reverse plug and anti-mutual insert.
2. High discharge capacity, low residual voltage.
3. Overtemperature protection.
4. Failure indication and centralized remote signalling alarm dry contacts.
5. Enclosure IP 20, UL 94 V-0.

Standards Complied
IEC 61643-11: 2011 Low-voltage surge protective devices - Part 11: Surge protective devices connected to low-voltage power systems – Requirements and tests.
EN 61643-11: 2012 Low-voltage surge protective devices - Part 11: Surge protective devices connected to low-voltage power systems – Requirements and tests.

Technical Data
Operating Environment
Temperature range
 -40 ℃~80 ℃
Relative humidity range
5 %～95 %
Altitude range
-500 m～﹢4000 m
Technical Parameters
Model
ZGG40-275(3+1)hs
ZGG40-320(3+1)hs
ZGG40-385(3+1)hs
ZGG40-440(3+1)hs
SPD according to
IEC 61643-11
Class Ⅱ
SPD according to
EN 61643-11
Type 2
Max. continuous operating voltage UC
L-N: 275 V AC
N-PE: 260 V AC
L-N: 320 V AC
N-PE: 260 V AC
L-N: 385 V AC
N-PE: 260 V AC
L-N: 440 V AC
N-PE: 260 V AC
Operating frequency
50/60 Hz
Nominal discharge current In (8/20 μs)
20 kA
Max. discharge current Imax (8/20 μs)
40 kA
Voltage protection level Up
L-N: 1.4 kV
N-PE: 1.5 kV
L-N: 1.6 kV
N-PE: 1.5 kV
L-N: 1.8 kV
N-PE: 1.5 kV
L-N: 2.2 kV
N-PE: 1.5 kV
Follow Current Interrupting Rating Ifi
N-PE: 100 Arms
Max. backup fuse
80 A gL/gG
Connection mode
parallel
Protection mode
L-N、N-PE
Response time tA
L-N: ≤ 25 ns; N-PE: ≤ 100 ns
Cross-sectional Area
Stranded: 1.5 mm2~25 mm2, Solid: 1.5 mm2~35 mm2
Max. Cross-sectional Area For Remote signalling terminals
1.5 mm2
Intensity of Remote Signalling Alarm Contact
AC: 250 V/0.5 A   125 V/1 A    DC: 30 V/0.1 A
Torque: Connecting Terminal/Remote Signalling Interface
2.5 N•m /0.25 N•m
Degree of Protection
(IP Code)
IP 20
Installation system
TT、TN
TT、TN
TT、TN
TT、TN、IT
Mounting on
DIN 35 mm rail
Flammability
UL94 V-0

Circuit Diagram

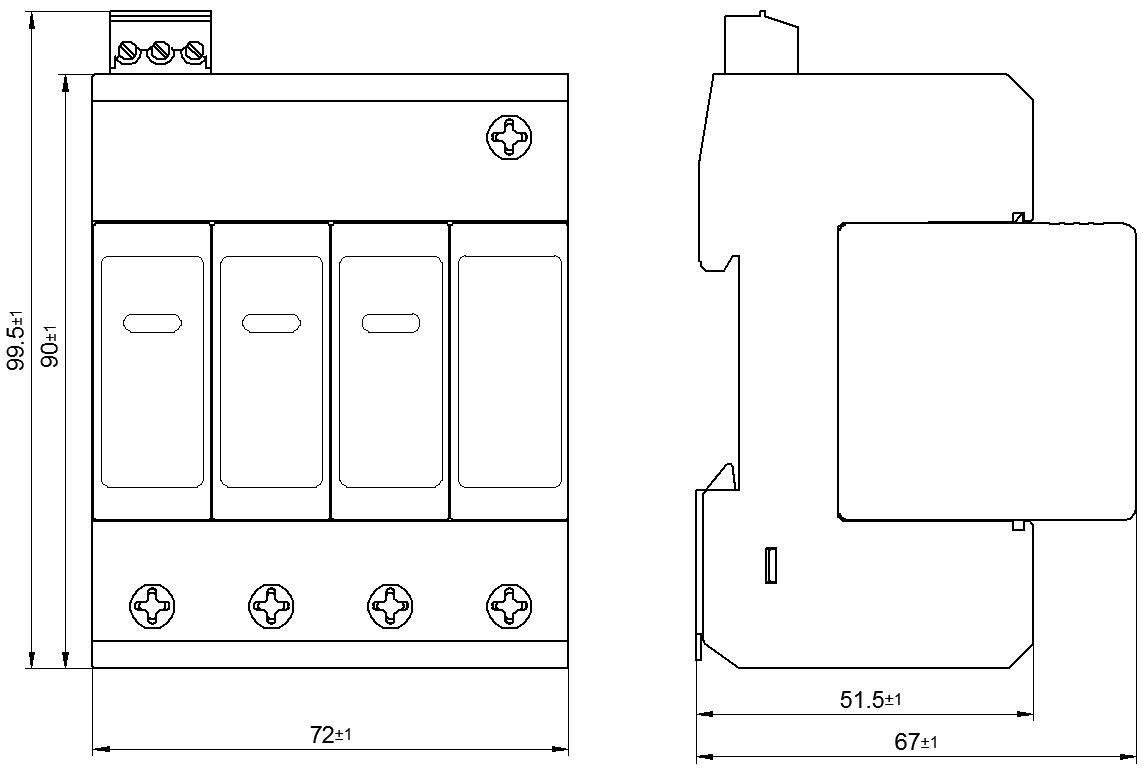

Configuration
