ZGXM-MZ2J-24c Signal SPD
General
The ZGXM-MZ2J-24c signal SPD is used for protecting industrial control networks, RS422/485 interfaces, private wires, automatic control and instrument lines, data lines and telephone devices, fax machines and other devices from lightning. This product uses two-stage protection to protect devices, that is, current release in the first stage and current clamping in the second stage. When a transmission line suffers lightning induction or surge attack, the SPD diverts lightning and surge current to ground, and clamps lightning and surge overvoltage to the scope allowed by the device.
Features
Easy installation: Terminal-based connection and guide rail-based installation
Hot-pluggable, compact size, high discharge capacity, fast response (ns), low protection level
Standards Complied
GB/T 18802.21-2016 Low-voltage surge protective devices – Part 21: Surge protective devices connected to telecommunications and signaling networks – Performance requirements and testing methods
Technical Data
Operating Environment
| Temperature |
–40°C to 85°C |
| Humidity |
≤ 90% (25°C) |
| Altitude |
≤ 4000 m |
Technical Parameters
| Model |
ZGXM-MZ2J-24c |
| Types of impulses |
C2 and D1 |
| Nominal operating voltage UN |
24 V |
| Maximum continuous operating voltage UC |
33 VDC |
| Rated load current IL (25°C) |
1 A |
| Nominal discharge current In (8/20 μs) |
10 kA |
| Total nominal discharge current In (8/20 μs) |
20 kA |
| Impulse discharge current Iimp (10/350 μs) |
1 kA |
| Voltage protection level UP (8/20 μs) |
L-L |
55 V |
| L-PE |
600 V |
| Voltage protection level UP (1 kV/ μs) |
L-L |
45 V |
| L-PE |
300 V |
| Series resistance per path |
1.0 ohms |
| Cut-off frequency fG |
7.8M Hz |
| Capacitance |
≤1.0 nF |
| Protected pin |
四线 ( 1, 2; 3, 4 ) |
| Crimping area |
0.2 mm2 to 4 mm2 |
| Material of enclosure |
PA66 |
| Type of interface |
接线端子 |
| Torque: Wiring terminal |
0.5 Nm |
| Color |
RAL 7035 |
| Protection level |
IP20 |
| Fire resistance |
UL94 V-0 |

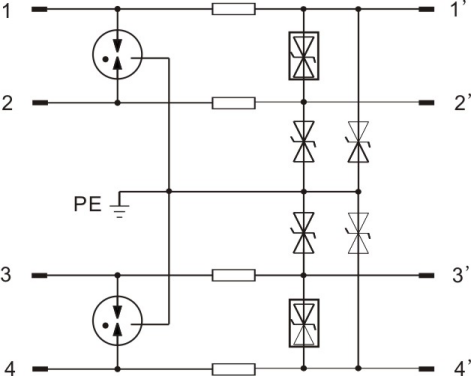

Circuit Diagram
Configuration

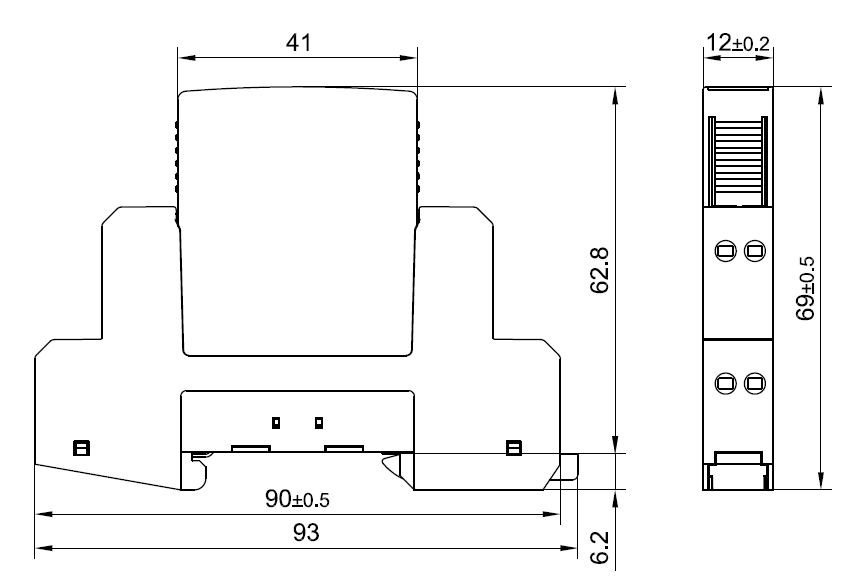

Dimensions (H x W x D): 69 mm x 93 mm x 12 mm
