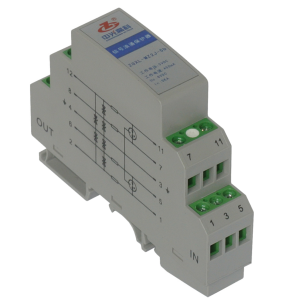

ZGXL-MZ2J-5b Signal SPD
General
The ZGXL-MZ2J-5b Signal SPD can be used in industrial control internetwork, RS485/422 interface, special line, automatic control, instrument line, data line, telephone equipment, fax equipment and etc. The two-class protection is adopted, with the first class to shunt the current and the second to clamp the voltage. Once the transmission line is struck by lightning strokes and surges, the SPD will shunt the lightning and surge current to the ground, clamping it to an acceptable range of equipment, which protects the equipment.
Features
Characterized by high discharge capacity, fast response speed (ns) and low protection level, and can be installed on the 35mm DIN rail with the connection mode of terminal blocks.
Standards Complied
GB/T 18802.21 Low-voltage surge protective devices – Part 21: Surge protective devices (SPD) connected to telecommunications and signaling networks – Performance requirements and testing methods.
Technical Data
Operating Environment
| Temperature |
-40℃～85℃ |
| Relative humidity |
≤90% (25℃) |
| Altitude |
≤ 4000 m |
| Storage life |
24 months |
| Moisture sensitivity level |
Non-sensitive |
| Static sensitivity level |
Non-sensitive |
Technical Parameters
| Model |
ZGXL-MZ2J-5b |
| Operating voltage Uc |
5 V |
| Rated current IL |
450 mA |
| Nominal discharge current 8/20 μs |
5 kA |
| Max. Discharge current 8/20 μs |
10 kA |
| Limiting voltage 8/20 μs 5 kA |
After 1 μs ≤15 V |
| Surge voltage impulse 10/700 μs |
6 kV |
| Surge voltage impulse 1.2/50 μs |
6 kV |
| Protected pins |
Two pairs of line (1, 5; 7, 11) |
| Enclosure |
PBT |
| Torque: Connecting Terminal |
0.5 Nm |
| Color |
Cool gray |
| Degree of protection |
IP20 |
| Flammability |
UL94 V-0 |
| Weight |
< 80 g |
| Warranty period |
24 months |

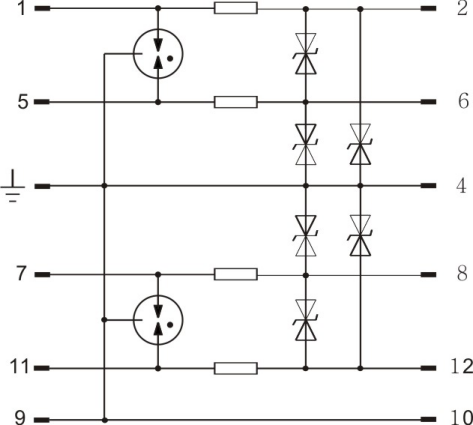

Circuit Diagram
Configuration

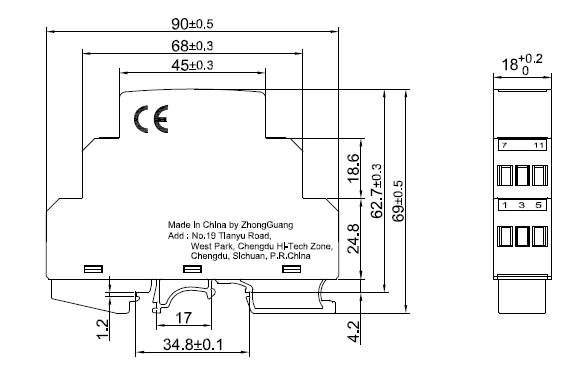

Dimensions: 90 mm×69 mm×18 mm (L×W×H)
| Input end (surge end) |
1 |
5 |
7 |
11 |
| Output end (device end) |
2 |
6 |
8 |
12 |
| PE (lightning-ground) |
3, 4 |
