Model
|

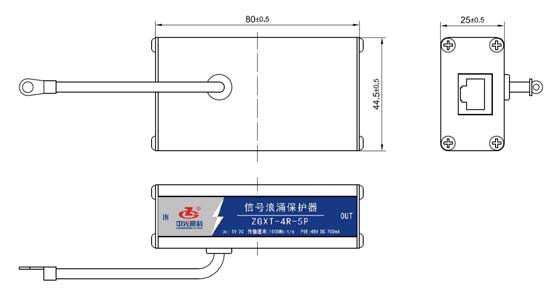

ZGXT-4R-5P
|
|
|
Rated voltage Un
|
Gigabit network: 3.3 V DC POE: 48 V DC
|
|
|
Rated operating current IL (Normal temperature)
|
700 mA
|
|
|
Maximum continuous operating voltage Uc
|
Gigabit network: 3.3 V DC POE: 60 V DC
|
|
|
Impact tolerance test 10/700 μs
|
8 L-PE
|
6 kV
|
|
Nominal discharge current 8/20 μs
|
L-L
|
1 kA
|
|
8 L-PE
|
3 kA
|
|
|
Voltage protection level
(8/20 μs 1 kA) |
L-L
|
After 2 μs ≤ 40 V
|
|
L-PE
|
After 2 μs ≤ 300 V
|
|
|
Protection mode
|
L-L, L-PE
|
|
|
Transmission rate
|
1000 Mbit/s
|
|
|
Insulation resistance
|
≥ 100 kΩ
|
|
|
Interface form
|
RJ45
|
|
|
Protected object
|
1、2，3、6，4、5，7、8
|
|
|
Protection level
|
IP 20
|
|
