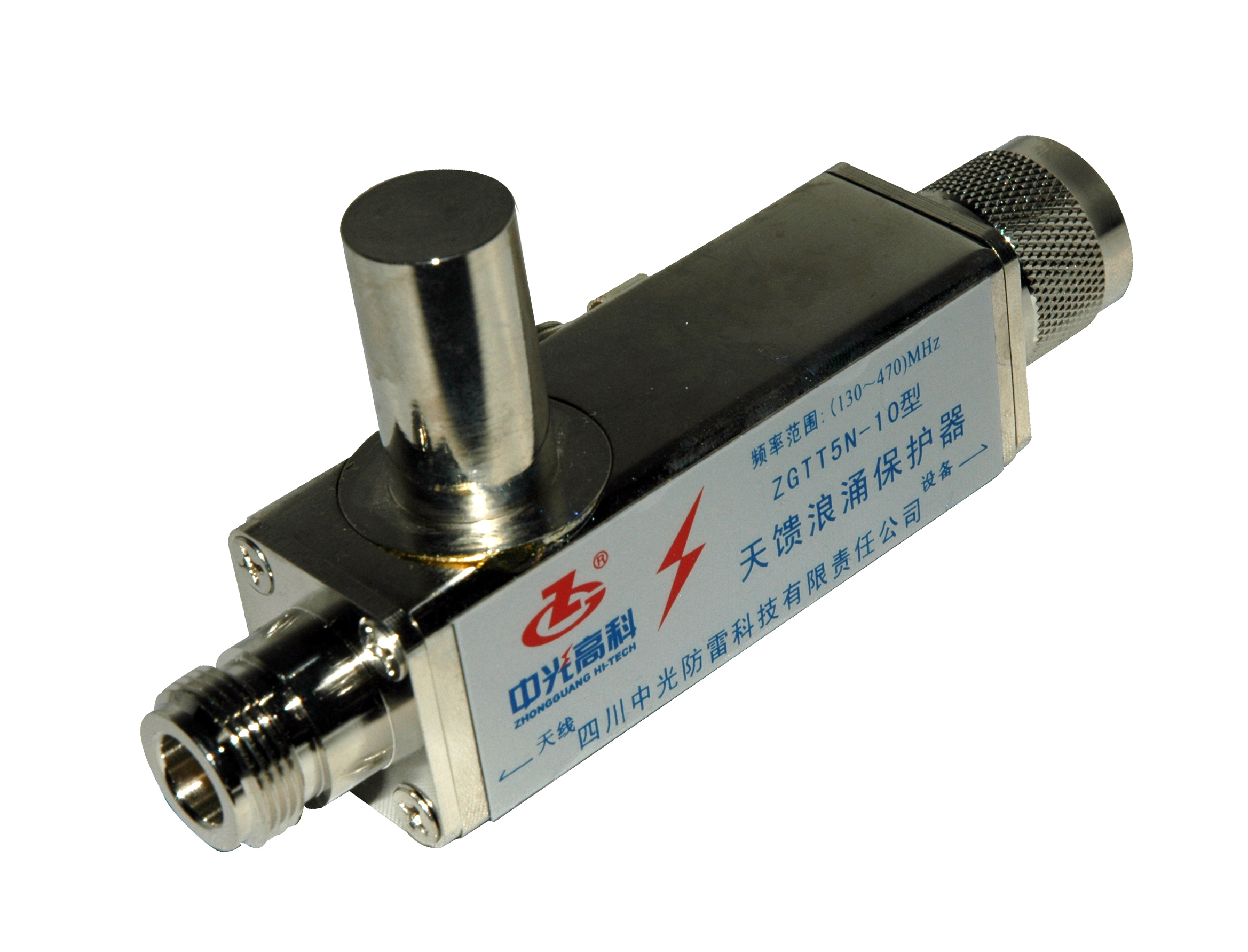

ZGTT5N-10 Antenna Feeder SPD



General
The ZGTT5N-10 Antenna Feeder SPD is mainly applicable to the antenna feeder of the radio communication station, suppressing induced lightning waves from the antenna feeder, and thus protecting electronic equipment. In this way, the damage caused by induced lightning waves, abnormal power supply and static discharge from the antenna feeder can be avoided.

Standards Complied
Q/75875187-9·4—2011 Antenna Feeder SPD.

Technical Data
Model
ZGTT5N-10
Applicable power
300 W
Nominal discharge current In (8/20 μs)
5 kA
Max. discharge current Imax (8/20 μs)
10 kA
Limiting voltage (10/70 μs)
≤ 100 V
Operating frequency
130 MHz～470 MHz
Insertion loss
≤ 0.2 dB
VSWR
≤ 1.2
Characteristic impedance of port
50 Ω
Model of port (input/output)
N-50K, N-50J
Degree of protection
IP 20

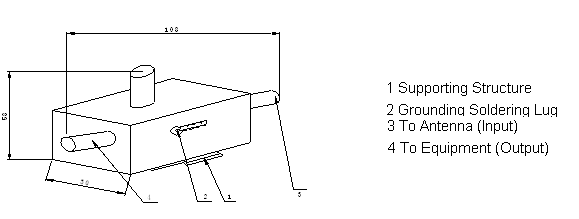

Configuration
Dimensions: 108 mm×58 mm×30 mm
