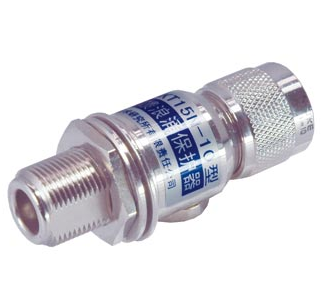

ZGKT15N-10 Antenna Feeder SPD

General
The ZGKT15N-10 Antenna Feeder SPD is mainly applicable to the antenna feeder of the radio communication station, suppressing induced lightning waves from the antenna feeder, and thus protecting electronic equipment. In this way, the damage caused by induced lightning waves, abnormal power supply and static discharge from the antenna feeder can be avoided.

Standards Complied
Q/75875187-9·4—2011 Antenna Feeder SPD.

Technical Data
Model
ZGKT15N-10
Applicable power
100 W
Nominal discharge current In (8/20 μs)
5 kA
Max. discharge current Imax (8/20 μs)
10 kA
DC breakdown voltage 100V/s
(230 ±40) V
Impulse puncture voltage 1kV/μs
≤ 600 V
Operating frequency
DC-1500 MHz
Insertion loss
≤ 0.1 dB
VSWR
≤ 1.2
Characteristic impedance of port
50 Ω
Model of port (input/output)
N- (K/J)
Degree of protection
IP20

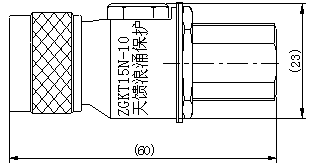

Configuration
Dimensions : 60 mm×23 mm
