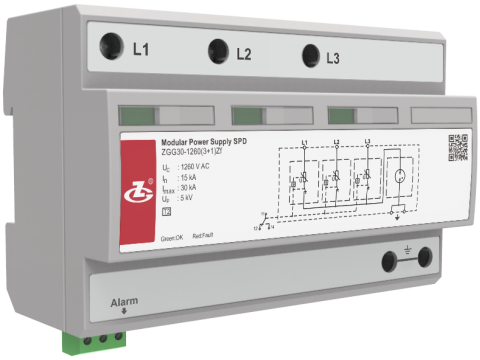

ZGG30-1260(3+1)Zf

General
ZGG30-1260(3+1)Zf is made up of MOV power modules and GDT power module, used for protection of L-PE. It is applied in low voltage AC power distribution system, and connected between the AC power supply and the equipment in parallel. It can prevent the equipment from the impulse surge and the transient overvoltage caused by the outside environment (such as lightning, EMI, etc.) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance load, etc.) .

Features
1. High discharge capacity, low residual voltage.
2. Overtemperature protection.
3. Failure indication and centralized remote signalling alarm dry contacts.
4. Enclosure IP20, UL94 V-0.

Standards Complied
IEC 61643-11: 2011 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test
EN 61643-11: 2012 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test

Technical Data
Operating Environment
Temperature range
 -40 ℃~﹢80 ℃
Relative humidity range
5 %~95 %
Altitude range
-500 m~﹢4000 m
Technical Parameters
Model
ZGG30-1260(3+1)Zf
SPD According to IEC 61643-11
Class Ⅱ
SPD According to EN 61643-11
Type 2
Max. continuous operating voltage UC
1260 V AC
Operating frequency
50/60 Hz
Nominal discharge current In (8/20 μs)
15 kA
Max. discharge current Imax (8/20 μs)
30 kA
Total discharge current ITotal(8/20 μs)
100 kA
Impulse breakdown voltage (1kV/ us)
≥ 2.2 kV
Voltage protection level Up
5 kV
Max. backup fuse
63 A gL/gG
Connection mode
Parallel
Protection mode
L-PE
Response time tA
≤ 100 ns
Cross-sectional Area
Stranded: 1.5 mm2 ~ 25 mm2
Solid: 1.5 mm2 ~ 35 mm2
Max. Cross-sectional Area For Remote signalling terminals
1.5 mm2
Intensity of Remote Signalling Alarm Contact
AC: 250 V/0.5 A 125 V/1 A DC: 30 V/0.1 A
Torque: Connecting Terminal/Remote Signalling Interface
2.5 N•m /0.25 N•m
Degree of Protection (IP Code)
IP 20
Installation system

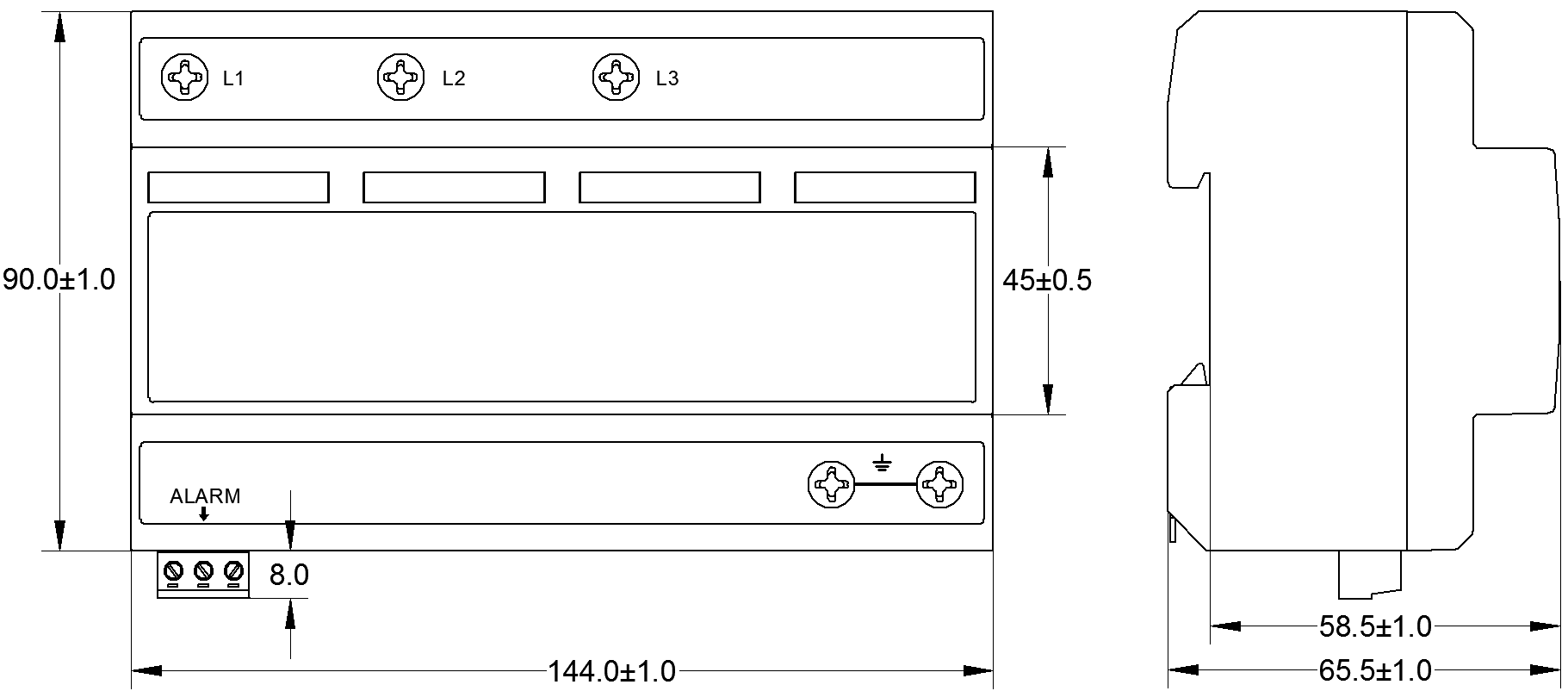

144 mm×90 mm×65.5 mm (excluding remote signalling terminals)
Dimensions
DIN 35 mm rail
Mounting on
UL94 V-0

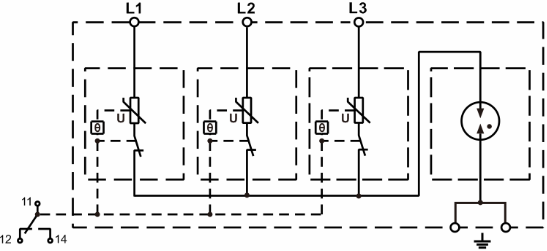

Circuit Diagram
Configuration
