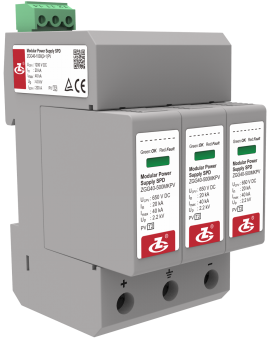

ZGG40-1000(2+1)PV

General
The ZGG40-1000(2+1)PV Modular Power Supply SPD is connected in parallel with the DC power system or photovoltaic system, which can be used to implement the second stage inverter protection. The module uses the MOV as a inside protective element, and it can be disconnected in a safe way to prevent overheating and overcurrent, to ensure that when the product fails, the DC arc can be safely off, without any burning and other accidents. In the absence of a surge, SPD has a high impedance, and when there is an overvoltage surge current, SPD will present ≤25ns response speed and continuous impedance decreases, thus the voltage across the SPD can be limited to a low level, thereby preventing lightning overvoltage (direct lightning overvoltage, overvoltage induced by lightning, etc.), switching overvoltage (any overvoltage generated by switching of electrical device, failure to start, and interruption) and temporary overvoltage (overvoltage generated by failure of low-voltage distribution system, activation of capacitors and start and stop of motors) damage to the equipment.

Features
1. Anti-reverse plug.
2. High discharge capacity, low residual voltage.
3. Overtemperature protection.
4. Failure indication and centralized remote signalling alarm dry contacts.
5. Enclosure IP 20, UL94 V-0.

Standards Complied
EN 50539-11: 2013  Low-voltage surge protective devices - Surge protective devices for specific application including d.c. - Part 11: Requirements and tests for SPDs in photovoltaic applications

Technical Data
Operating Environment
Ambient temperature
-40 ℃～80 ℃
Relative humidity
5 %～95 %
Altitude
-500 m～+4000 m
Technical Parameters
Model
ZGG40-1000(2+1)PV
SPD According to EN 50539-11: 2013
Type 2
Overload behaviour mode
OCM
Max. continuous operating voltage UCPV
 1200 V DC
Rated short circuit current ISCPV
1000 A
Nominal discharge current In (8/20 μs)
20 kA
Max. discharge current Imax (8/20 μs)
40 kA
Voltage protection level Up
4.0 kV
Residual current IPE
DC :≤ 20 μA; AC: ≤ 500 μA
Connection mode
Parallel
Protection mode
+ — -; +/- — PE
Response time tA
≤ 25 ns
Cross-sectional area for connection terminals to connect copper wires
Multicore cable: 1.5mm2 ～ 25 mm2
Single-core cable: 1.5mm2 ～ 35 mm2
Max. cross-sectional area for remote signalling terminals
1.5 mm2
Intensity of remote signalling alarm contact
AC: 250 V/0.5 A 125 V/1 A DC: 30 V/0.1 A
Torque: connecting terminal/remote signalling interface
2.5 N•m /0.25 N•m
Application system
Photovoltaic system
Mounting on
DIN 35 mm rail
Dimensions
90 mm×54 mm×67 mm
(excluding remote signalling terminals)
Flammability
UL 94 V-0
Degree of protection:
IEC 60529 IP 20

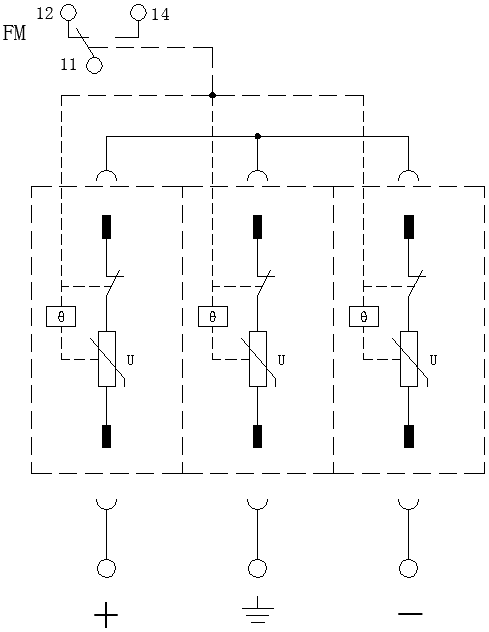

Circuit Diagram

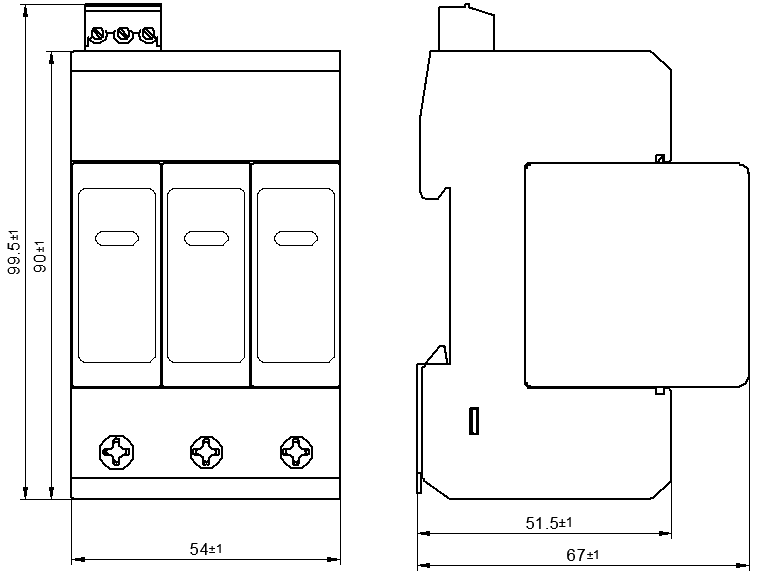

Configuration
