ZGP1-32-H8-FZ-H Uniphase Power Distribution Unit (PDU)

General

The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.

The ZGP1 series PDU is mainly used for AC power distribution (including TT, TN, IT power distribution system) of system equipment in the cabinet of the equipment room. According to the power distribution power of the system equipment and the power distribution interface, the corresponding input and output interfaces are configured.

Features

1. Support 16A current input.

2. With working and lightning protection indicator functions.

3. Aluminum profile black shell is adopted.

Technical Data

Operating Environment

Temperature range	-5 ℃～45 ℃
Storage temperature	-40 ℃～70 ℃
Storage humidity	5%～95% RH
Altitude range	-500 m～﹢2000 m

Technical Parameters

Model	ZGP1-32-H8-FZ-H
Number of input channels	Single input
Rated input voltage	200 V~240 V
Input power frequency	50/60 Hz
Maximum input current	32 A
Enter cable wire specifications	36 mm²3 m
Number of output units	8 bits
Output socket system	GB 5-hole socket
Lightning protection function	Green light: normal; Light off: no power on or lightning protection failure

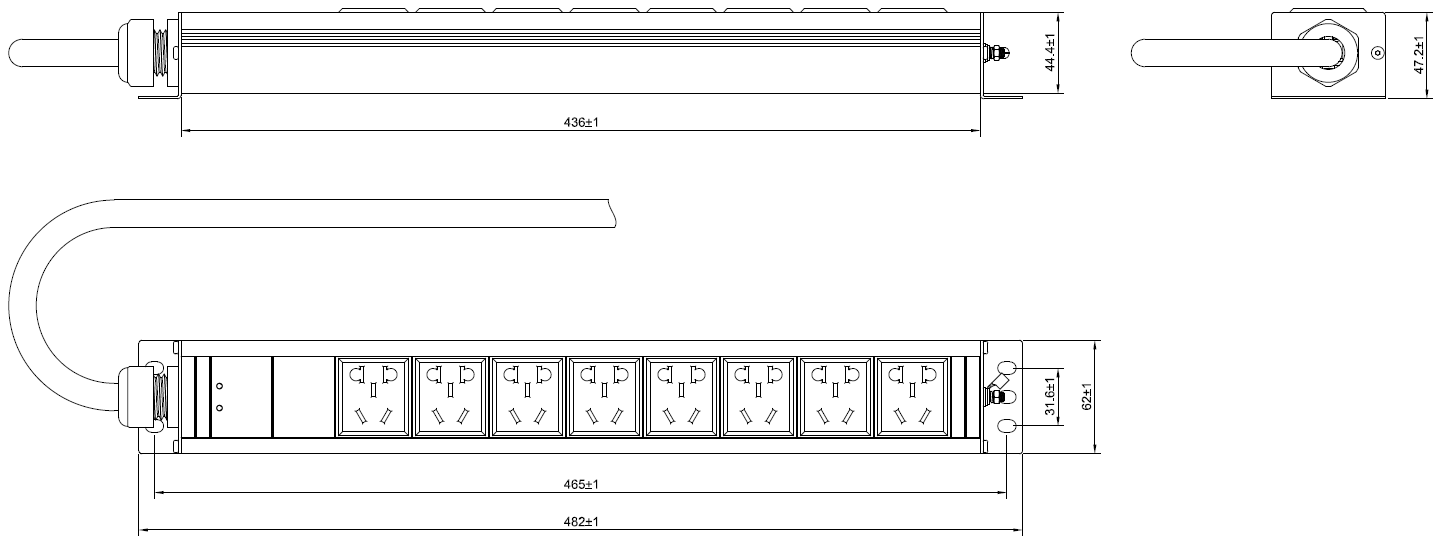

Overall dimension LWH	482 mm62 mm47.2 mm
Installation method	Horizontal installation
Shell material	Aluminum profile metal shell
Panel color	Black
Socket module	Material: PA66 Flame retardant rating: meets UL 94 V-0 rating
Environmental requirements	RoHS

Configuration

Standards Complied

YD/T 2063-2009 Distribution Unit (PDU) for Communication Equipment.

GB 1002-2008 Single phase plugs and sockets for household and similar purposes, basic parameters and dimensions.
