ZGDK-24 Fast Loading Grounding Electrode
General
The ZGDK-24 Fast Loading Grounding Electrode is a kind of vertically installed steel grounding body. The copper, nickel, and chromium coatings on the surface not only enhance the corrosion resistance, but also give the advantages of high conductivity, convenient installation, and super electrical performance, which can be used as the lightning protection grounding, static protective ground, working earthing, and protective earthing.
The grounding body applies to the city building earth mat, or the devices and equipment that must be grounded indoors where the earth mat cannot be designed; meanwhile, it is suitable for the clay, sandy soil, etc. In a word, it is integrated with simplicity, expeditiousness, economy and practicality.
Standards Complied
Q/75875187-9·6—2011 Grounding Body.
Technical Data
|
Model
|
ZGDK-24
|
|
Overall dimensions
|
(Ф28×2500) mm
|
|
Weight
|
(6.5 ±0.2) kg
|

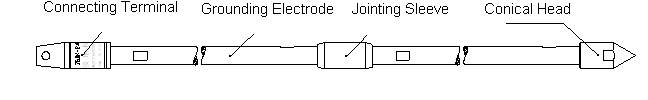

Configuration
Overall dimensions: Ф28 mm×2500 mm
