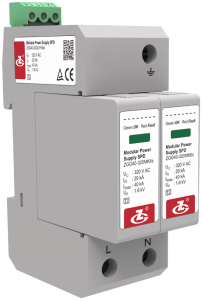

ZGG40-275/320/385/440(2+0)hs

General
This series consists of MOV power modules and a base, and is used for second-level protection of L-PE and N-PE. It applies in low voltage AC power distribution systems, and is connected between the AC power supply and the equipment in parallel. It protects the equipment from impulse surge and transient overvoltage caused by the outside environment (such as lightning and EMI) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance loads).

Features
1. Anti-reverse plug.
2. High discharge capacity, low residual voltage.
3. Overheating protection.
4. Failure indication and centralized remote signalling alarm dry contacts.
5. Degree of protection IP20, flammability UL 94 V-0.

Standards Complied
IEC 61643-11: 2011 Low-voltage surge protective devices - Part 11: Surge protective devices connected to low-voltage power systems - Requirements and test methods
EN 61643-11: 2012 Low-voltage surge protective devices - Part 11: Surge protective devices connected to low-voltage power systems - Requirements and test methods.

Technical Data
Operating Environment
Temperature range
–40°C to 80°C
Relative humidity range
5% to 95%
Altitude range
–500 m to +4000 m
Technical Parameters
Model
ZGG40-275(2+0)hs
ZGG40-320(2+0)hs
ZGG40-385(2+0)hs
ZGG40-440(2+0)hs
SPD according to
IEC 61643-1
Class Ⅱ
SPD according to
EN 61643-11
Type 2
Max. continuous operating voltage UC
275 V AC
320 V AC
385 V AC
440 V AC
Operating frequency
50/60 Hz
Nominal discharge current In (8/20 μs)
20 kA
Max. discharge current Imax (8/20 μs)
40 kA
Voltage protection level Up
1.4 kV
1.6 kV
1.8 kV
2.2 kV
Max. backup fuse
80 A gL/gG
Connection mode
In parallel
Protection mode
L-PE、N-PE
Response time tA
≤ 25 ns
Cross-sectional area of connecting terminals
Multi-core: 1.5 mm2 to 25 mm2, single-core: 1.5 mm2 to 35 mm2
Max. cross-sectional area of remote signalling terminals
1.5 mm2
Intensity of remote signalling alarm contact
AC: 250 V/0.5 A   125 V/1 A    DC: 30 V/0.1 A
Torque: connecting terminal/remote signalling interface
2.5 N•m /0.25 N•m
Degree of protection of enclosure (IP code)
IP 20
Installation system
TN-S
Mounting location
DIN 35 mm rail
Flammability
UL 94 V-0

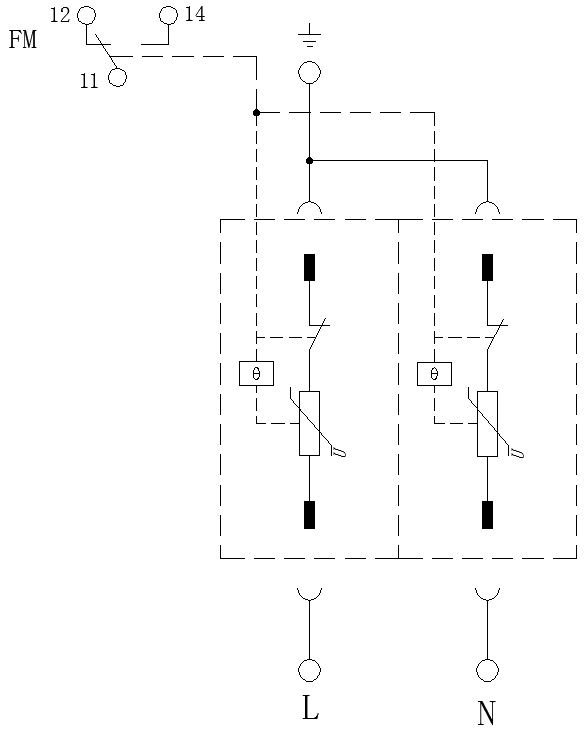

Circuit Diagram

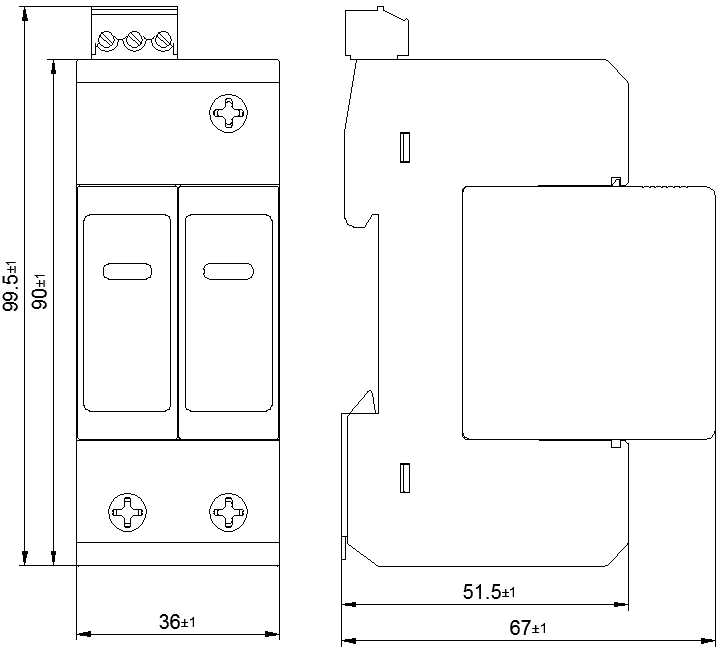

Configuration
