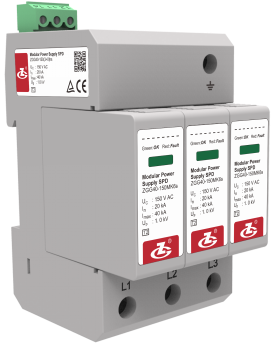

ZGG40-150/275/320/385/440(3+0)hs

General
This series is made up of  MOV power modules and a base, used for secondary protection of L-PEN respectively. It is applied in low voltage AC power distribution system, and connected between the AC power supply and the equipment in parallel. It can prevent the equipment from the impulse surge and the transient overvoltage caused by the outside environment (such as lightning, EMI, etc.) or by the system (such as switching effects of the system, startup or shutoff of the inductance and capacitance load, etc.) .

Features
1. Anti-reverse plug .
2. High discharge capacity, low residual voltage.
3. Overtemperature protection.
4. Failure indication and centralized remote signalling alarm dry contacts.
5. Enclosure IP20, UL94 V-0.

Standards Complied
IEC 61643-11: 2011 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test .
EN 61643-11: 2012 Low-voltage surge protective device-part 11: surge protective devices connected to low-voltage power systems-Requirements and test.

Technical Data
Operating Environment
Temperature
 -40 ℃~80 ℃
Relative humidity
5 %～95 %
altitude
-500 m～﹢4000 m
Technical Parameters
Model
ZGG40-150(3+0)hs
ZGG40-275(3+0)hs
ZGG40-320(3+0)hs
ZGG40-385(3+0)hs
ZGG40-440(3+0)hs
SPD according to IEC 61643-11
Class Ⅱ
SPD according to EN 61643-11
Type 2
Max. continuous operating voltage UC
150 V AC
275 V AC
320 V AC
385 V AC
440 V AC
Operating frequency
50/60 Hz
Nominal discharge current In (8/20 μs)
20 kA
Max. discharge current Imax (8/20 μs)
40 kA
Voltage protection level Up
1.0 kV
1.4 kV
1.6 kV
1.8 kV
2.2 kV
Max. backup fuse
80 A gL/gG
Connection mode
parallel
Protection mode
L-PEN
Response time tA
≤ 25 ns
Cross-sectional Area
Stranded: 1.5 mm2 ~ 25 mm2, Solid: 1.5 mm2~35 mm2
Max. Cross-sectional Area For Remote signalling terminals
1.5 mm2
Intensity of Remote Signalling Alarm Contact
AC: 250 V/0.5 A   125 V/1 A    DC: 30 V/0.1 A
Torque: Connecting Terminal/Remote Signalling Interface
2.5 N•m /0.25 N•m
Degree of Protection
(IP Code)
IP20
Installation system
TN-C
Mounting on
DIN 35 mm rail
Flammability
UL94 V-0

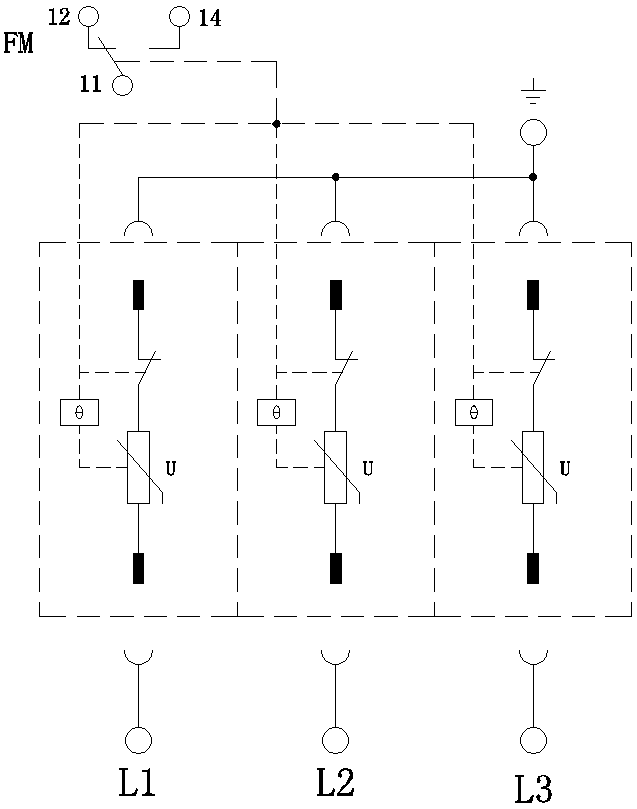

Circuit Diagram

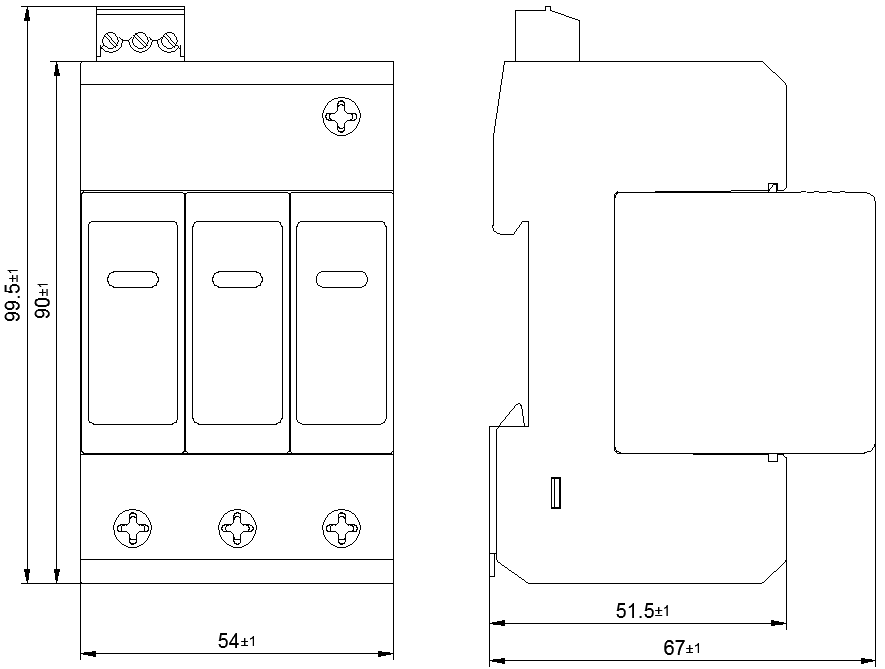

Configuration
