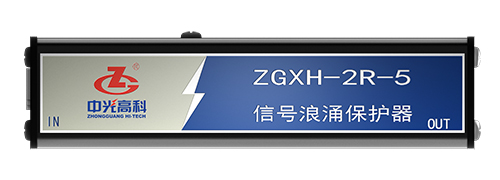

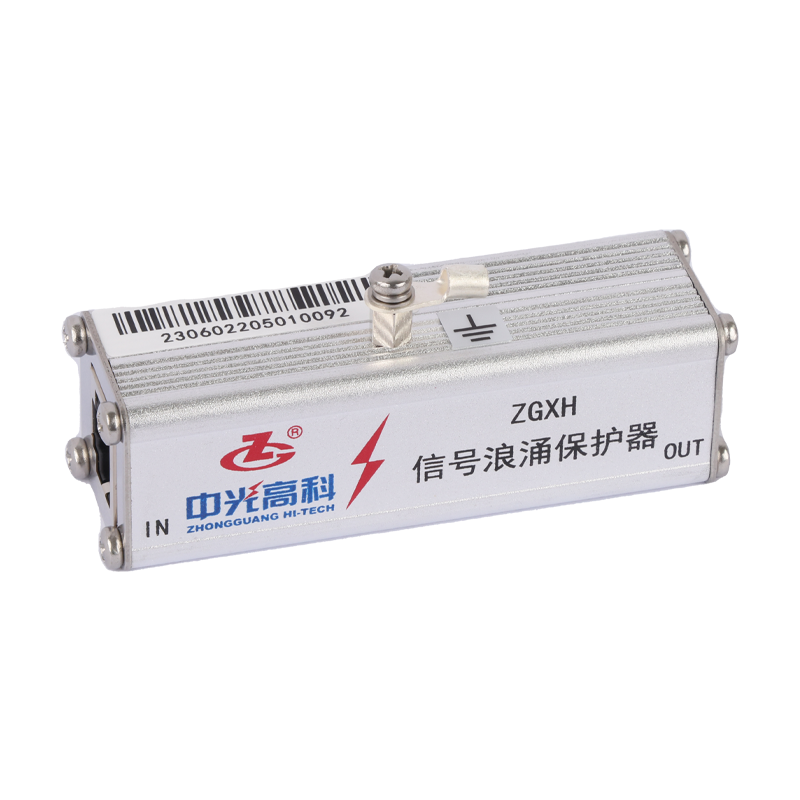

ZGXH-2R-5 type signal surge protector

Overview
The ZGXH-2R-5 type signal surge protector implements enterprise standards Q/20184261-8·7-2006 and YD/T 1542-2006.
ZGXH-2R-5 type signal surge protector is mainly used to protect high-speed Ethernet internal interface circuit, featuring high transmission rate (above 100Mbit/s), fast response speed and low protection level. Therefore, it can effectively improve the ability of high-speed Ethernet networks to resist overvoltage and lightning impulses.

Technical indicators

Model		RJ45
Protected objects		1, 2; 3, 6 feet
Operating Voltage		5 V
Ground impedance		≥ 1 kΩ
Transmission rate		100 Mbit/s
Insertion loss		≤ 1 dB
Limit voltage10/700 μs	L-L	≤ 30 V
Voltage protection leve lUg 1kV/ μs; 8/20 μs, 40 A	L-L	≤ 60 V
	L-PE	≤ 500 V
Nominal discharge current 8/20 μs	L-PE	3 kA
	SE-PE	5 kA

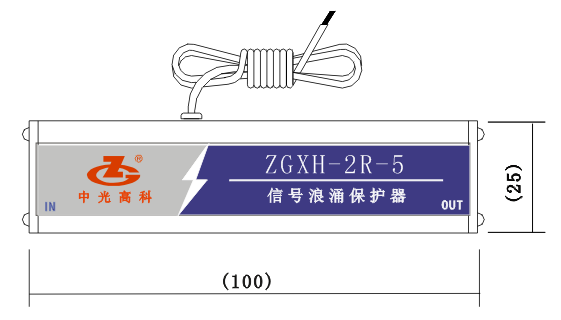

Dimensions		100 mm47mm25 mm (L×B×H)
Weight		110 g

Structure
The input and output of this product are RJ45 sockets, and the output end is passed.

Category 5 twisted pair with RJ45 plug is connected to the protected device.
