| Temperature | -40 ℃～70 ℃ |
| Relative humidity | 5 %～96 % |
| Atmospheric pressure | 80 kPa~160 kPa |
|

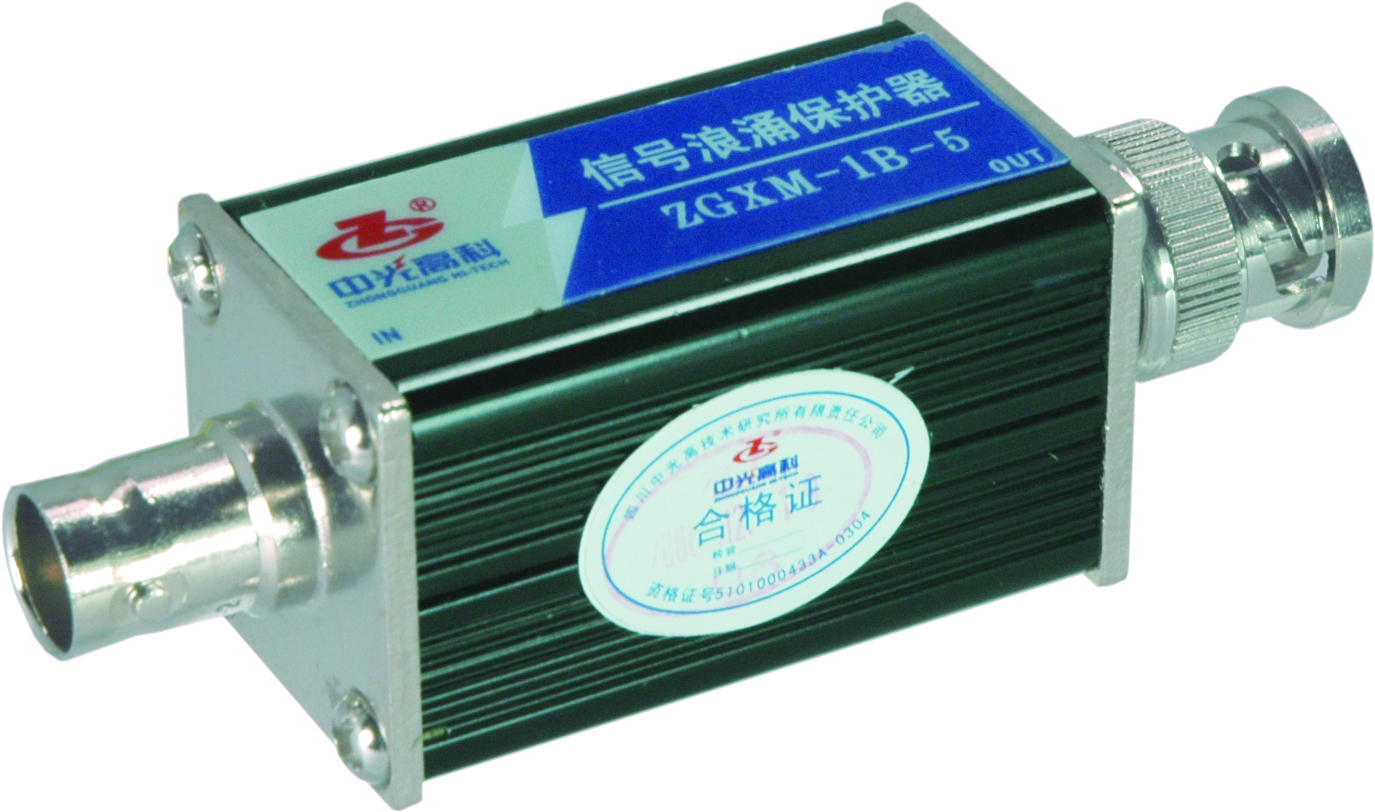

Model
|
IN
|
BNC-K
|
|
OUT
|
BNC-J
|
|
|
Operating Voltage
|
5 V
|
|
|
Characteristic impedance
|
75 Ω
|
|
|
Transmission rate
|
10 Mbit/s
|
|
|
Insertion loss
|
≤ 0.5 dB
|
|
|
Return loss
|
≥ 21 dB
|
|
| Insulation resistance | ≥ 0.4 mΩ | |
|
Limit voltage (1) 10/700 μs
|
≤ 30 V
|
|
|
Limit voltage (2)
1.2/50 μs 10 kV; 8/20 μs 5 kA Complex wave |
≤ 150 V
|
|
| Voltage protection leveI 1kV/μs | ≤ 190 V | |
| Impulse withstand capability (1) 1.2/50 μs; 8/50 μs | 10 kV; 5 kA | |
|
Impulse withstand capability (2) 8/20 μs
|
5 kA
|
|
|

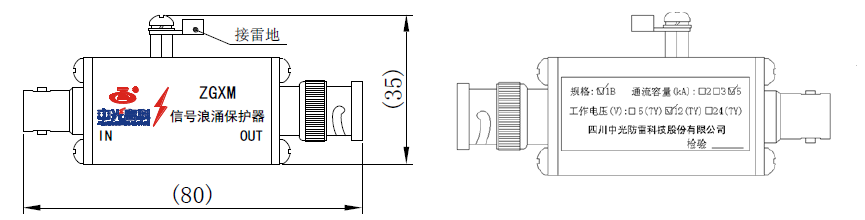

Dimensions
|
80 mm*35 mm*35 mm (L×B×H)
|
|
|
Weight
|
≤ 110 g
|
|
