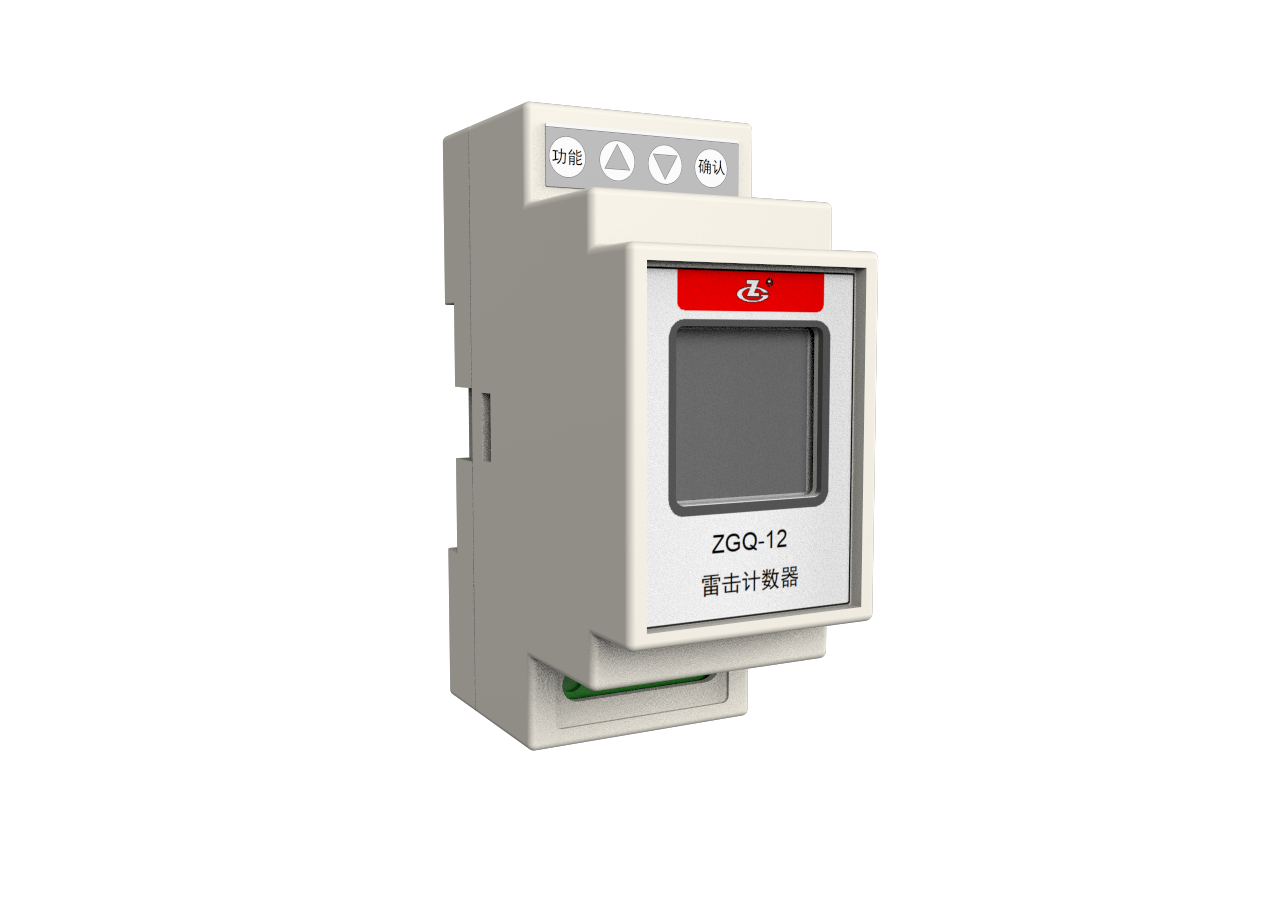

ZGQ-12 Lightning Counter

General

ZGQ-12 lightning counter is used to record the number and the time of lightning strikes. The product applies the principle of current induction, uses single-chip technology to control a three-digit liquid crystal display, and records the lightning current with amplitude in the range of 0.5 kA to 200 kA.

Operating Environment

Item	Specified Value
Power Supply	Lithium battery
Temperature	-40 ℃～+85 ℃
Relative humidity	5 %～95 %
Atmospheric pressure and altitude	62 kPa～106 kPa，-500 m～4000 m

Product Configuration

Name	Quantity	Unit	Remarks
Standard Configuration
ZGQ-12 lightning counter	1	PC	/
Lightning current sensor	1	PC	/

Performance Index

Item		Index
Amplitude measurement range	Counting start current (8/20 μs)	0.5 kA
	Maximum counting current (8/20 μs)	200 kA
Count digits		0 ～ 999
Output signal function		LCD display
Power supply		Lithium battery
Shell		Flame-retardant V-0 level
Protection level		IP 40
Installation method		Standard 35 mm rail mounting body
System average power consumption		≤ 1 W

Standards Complied

Q/75875187-9·7—2016 Lightning Monitoring System.

IEC 62561-6-2018 Lightning protection system components (LPSC) - Part 6: Requirements for lightning strike counters (LSC).

Configuration

Working Principle

The inductance probe is installed on the wire (generally the ground wire) through which the lightning current passes. When the lightning current comes, the inductance probe collects the lightning current signal and converts it into the voltage signal. After signal processing, the voltage signal is sent to the display unit controlled by the single-chip microcomputer. One record of lightning current is generated. When the lightning current comes again, record the lightning current again until 999 times then reset.
