model
|
ZGIP-02
|
|
Number of input channels
|
Single input
|
|
Rated input voltage
|
250 V AC
|
|
Input power frequency
|
50 Hz
|
|
Input Current
|
16 A
|
|
Number of output units
|
C13/8; C19/4
|
|
Output socket system
|
C13; C19
|
|

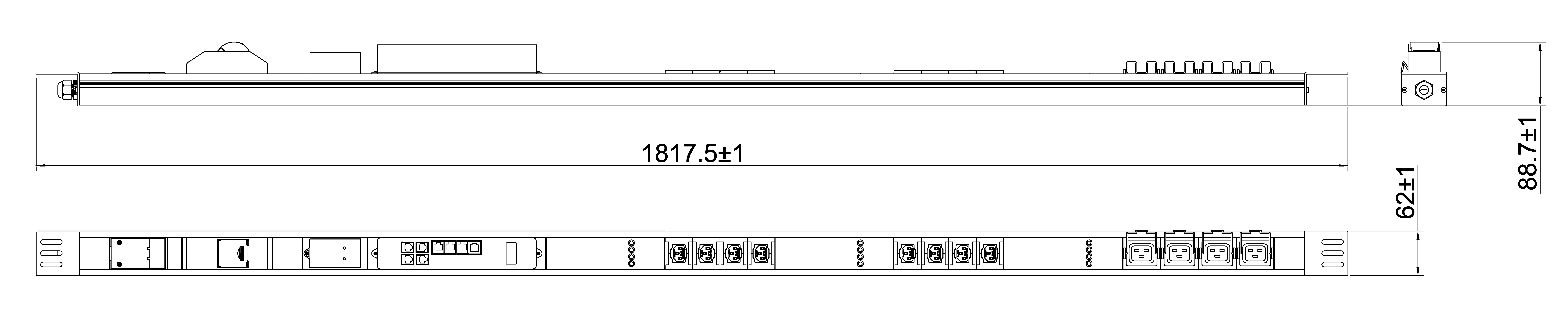

Dimensions
|
1817.5 mm*62 mm*88.7 mm
|
|
Installation method
|
Horizontal installation
|
|
Input interface type
|
Side cable input power supply
|
|
Housing material
|
Aluminum profile metal casing
|
|
Panel color
|
Black
|
|
Socket module
|
Material: PC/ABS Flame retardant rating: meets UL94 V-0 rating
|
|
Environmental requirements
|
RoHS
|
|
Monitoring function
|
Total / unit load current, total / unit input voltage
|
|
|
Total/unit load power monitoring
|
||
|
Total energy usage monitoring
|
||
|
Input frequency monitoring
|
||
|
Overvoltage/undervoltage monitoring
|
||
|
Monitoring of ambient temperature and humidity/smoke, access control, and flooding conditions
|
||
|
Monitoring of reclosing switch status
|
||
|
Surge protector status monitoring
|
||
|
Setting function
|
Set the upper and lower limits of the total load current
|
|
|
Input voltage upper and lower limit settings
|
||
|
Setting of upper and lower limits of ambient temperature and humidity
|
||
|
HTTP web service settings
|
||
|
Network parameter settings (IP/Gateway/Mask/DSN)
|
||
|
Power-on time per output unit
|
||
|
Alarm function
|
System alarm
|
Total load current / voltage / leakage current / temperature and humidity exceed the limit value
|
|
Surge protector alarm
|
||
|
Alarm mode
|
Buzzer buzzer, alarm indicator flashes
|
|
|
WEB displays alarm information
|
||
|
Control function
|
On/off control of each output unit
|
|
|
Reclosing switch control
|
||
|
Centralized monitoring function
|
Centralized monitoring, control and management through the host computer
|
|
|
Interview method
|
WEB access control through IP address
|
|
|
Query function
|
Related monitoring and alarm history data query
|
|
