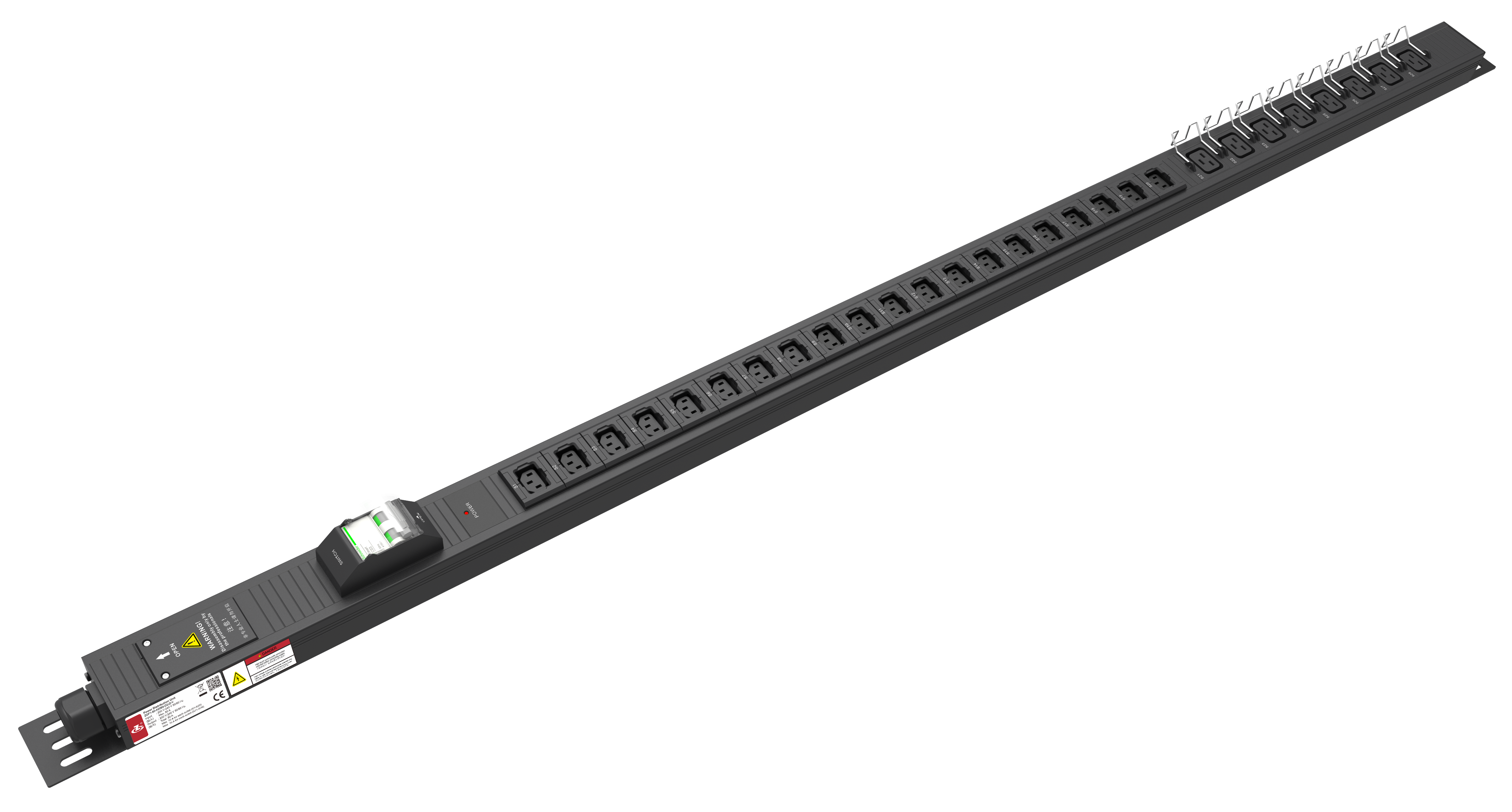

The ZGP1-50-A20B8-D2JZ-V Power Distribution Unit (PDU)

Overview
The Power Distribution Unit (PDU), due to its industrial-grade power distribution process design, delivers high levels of safety and reliability. Common and intelligent PDUs are widely used based on the importance of equipment distribution and power energy management in various data room systems.

The Zhongguang ZGP1 series PDU is mainly used for AC power distribution (including TT, TN, IT power distribution system) of system equipment in the cabinet of the equipment room. According to the power distribution power of the system equipment and the power distribution interface, the corresponding input and output interfaces are configured.

Technical indicators

Model	ZGP1-50-A20B8-D2JZ-V
Number of input channels	Single input
Rated input voltage	200 V~240 V
Input power frequency	50/60 Hz
Maximum input current	50 A
Number of output units	C13/20; C19/8
Output socket system	IEC 60320 C13; IEC 60320 C19
Internal connecting line cross-sectional area	10 mm²copper strips and 10 mm²wires
Dimensions LWH	1688 mm62 mm94 mm
Installation method	Bracket type vertical installation
Input interface type	Side cable input power supply
Housing material	Aluminum profile metal casing
Panel color	Black
Socket module	Material: PC/ABS Flame retardant rating: meets UL 94 V-0 rating
Environmental requirements	RoHS compliant

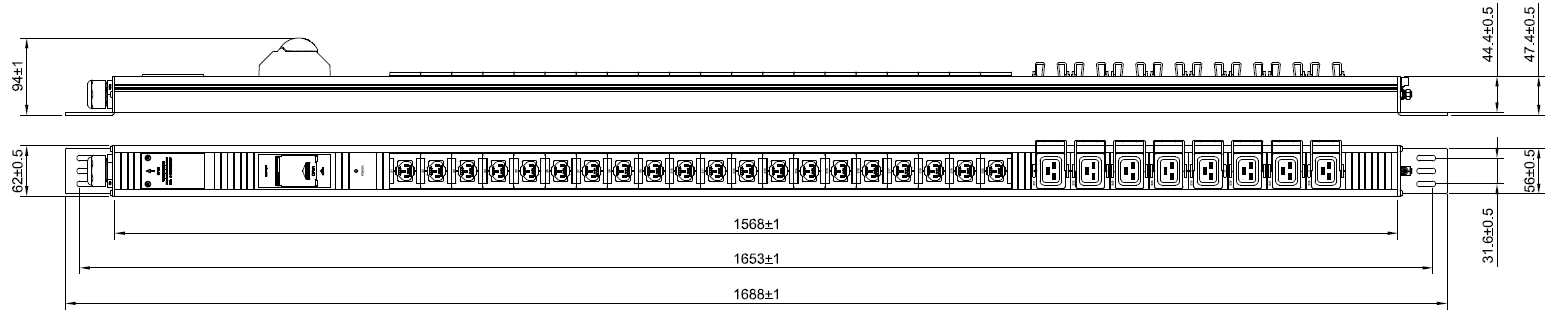

Structural dimensions

Executive standard
YD/T 2063-2009 Distribution Unit (PDU) for Communication Equipment.
EN 60950-1 Information technology equipment - Safety - Part 1: General requirements.
EN 55032
EN 55035
EN 61000-3-2
EN 61000-3-3

Certificate/certification
