ZGWJ1(TY) Network Switch Security Protector
General
Standards Complied: GB 18802.1-2002; GB/T18802.21-2004; Q/20184261-8.6-2006; Q/20184261-8.7-2006.
The product has the function on power and signal protection. It can be used for security protection of computer networks, multimedia network switches, intelligent corridor switches of institutions, schools, enterprises and institutions, and also for security protection of hubs, routers, etc.
The product is designed as a standard 1 cascade port and provides protection for 24 user-ports.
Technical parameters
|
Power section
|
|
Operating voltage
|
220 V
|
|
Max. continuous operating voltage
|
385 V
|
|
Nominal discharge current 8/20 μs
|
5 kA
|
|
Max. discharge current 8/20 μs
|
10 kA
|
|
Limiting voltage 8/20 μs; 5 kA
|
≤ 1.4 kA
|
|
Protection mode
|
L-PE; N-PE; L-N
|
|
Signal section
|
|
Max. continuous operating voltag
|
5 V
|
|
Transmission rate
|
100 Mbit/s
|
|
Insertion loss
|
≤ 3 dB
|
|
Protected objects
|
1, 2; 3, 6
|
|
Impulse limiting voltage (1) 10/700 μs
|
≤ 30 V
|
|
Impulse limiting voltage (2) 1.2/50 μs (600 V); 8/20 μs (300 A)
|
L/L
|
≤ 50 V
|
|
Impulse discharge voltage 1kV/μs
|
1, 2, 3, 6/PE
|
≤ 600 V
|
|
Impulse durability 1.2/50 μs; 8/20 μs Combination wave
|
SE/PE
|
6 kV; 3 kA
|
|
L/L
|
600 V; 300 A
|
|
Connection mode
|
IN
|
RJ45 Socket
|
|
OUT
|
Structure features
Use a standard 19-inch chassis that can be mounted directly on the rack or on the table.
Dimension: 442 mm×154 mm×44 mm
Weight: 2.2 kg
Front panel

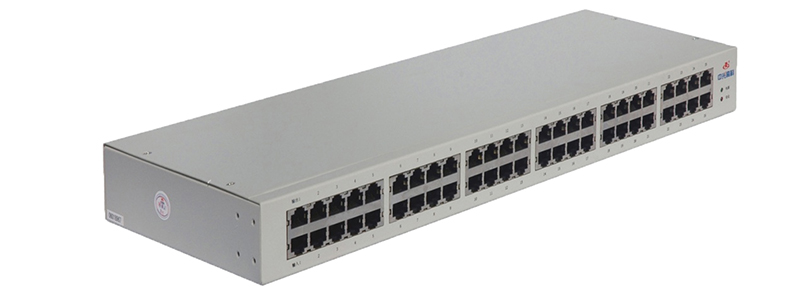

As shown in Fig.2, the front panel of the ZGWJ1(TY) network switch security protector has 50 RJ45 sockets. The lower row marks "1~25" as input ports, and the upper row marks "1~25" as output ports. “1” is a cascade port.
It is designed with a power indicator (green) and a degradation indicator (red).
Rear panel
As shown in Fig.3, the ZGWJ1 (TY) network switch security protector has two three-core power sockets on the rear panel. The socket with needle is the power input end including a power switch. Its input voltage is AC 220 V. The socket with hole is the power output end, connected to the protected network switch power supply. In addition there is a local grounding PE terminal.
