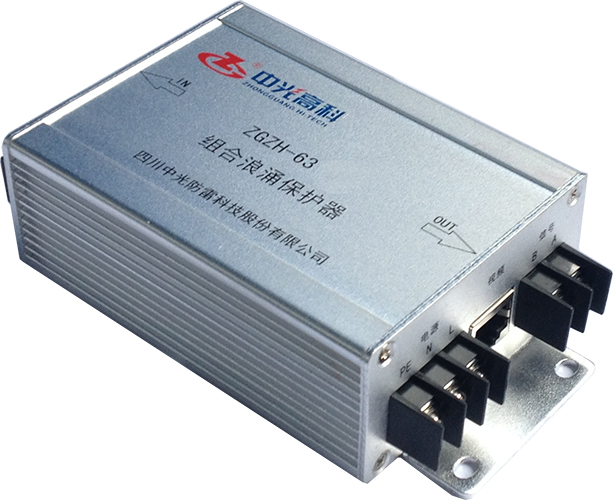

Power section
|
|
|
Operating Voltage
|
220 V
|
|
Maximum continuous operating voltage
|
385 V
|
|
Rated load current
|
4 A
|
|
Nominal discharge current 8/20 μs
|
10 kA
|
|
Maximum discharge current 8/20 μs
|
20 kA
|
|
Limit voltage 8/20 μs 10 kA
|
≤ 1.2 kV
|
|
Protection mode
|
L-PE; N-PE
|
|

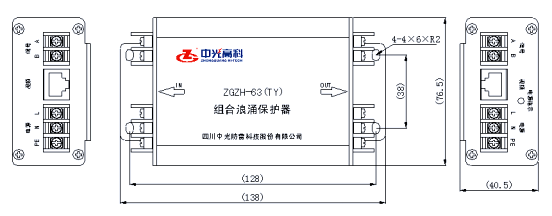

Dimensions
|
138 mm*76.5 mm*40.5 mm
|
|
Weight
|
≤ 350 g
|
|
Video part
|
|||
|
Model
|
RJ45
|
||
|
Protected objects
|
1, 2; 3, 6
|
||
|
Maximum continuous operating voltage
|
5 V
|
||
|
Transmission rate
|
100 Mbit/s
|
||
|
Nsertion loss
|
≤ 1 dB
|
||
|
Limit voltage (1) 10/700 μs
|
≤ 30 V
|
||
|
Impact limiting voltage (2) 1.2/50 μs; 8/20 μs
|
L-L
|
600 V; 300 A
|
≤ 50 V
|
|
L-PE
|
6 kV; 3 kA
|
≤ 150 V
|
|
|
Impact tolerance 1.2/50 μs; 8/20 μs
|
L-L
|
600 V; 300 A
|
|
|
L-PE
|
6 kV; 3 kA
|
||
|
SE-PE
|
10 kV; 5 kA
|
||
|
PTZ control section
|
|
|
Model
|
Terminals
|
|
Protected objects
|
A、B feet
|
|
Maximum continuous operating voltage
|
8 V
|
|
Transmission rate
|
2 Mbit/s
|
|
Insertion loss
|
≤ 0.5 dB
|
|
Impact limiting voltage (1) 10/700 μs
|
≤ 30 V
|
|
Impact limiting voltage (2) 1.2/50 μs; 10 kV; 8/20 μs; 5 kA
|
≤ 350 V
|
|
Impact tolerance 1.2/50 μs 8/20 μs
|
10 kV; 5 kA
|
