Power section
|
|
|
Operating Voltage
|
24 V AC
|
|
Maximum continuous operating voltage
|
35 V AC
|
|
Rated load current
|
5 A
|
|
Load side surge withstand capability
|
1 kA
|
|
Nominal discharge current 8/20 μs
|
5 kA
|
|
Maximum discharge current 8/20 μs
|
10 kA
|
|
Voltage protection level 8/20 μs
|
≤ 0.16 kV
|
|
Protection mode
|
L1～PE; L2～PE
|
|

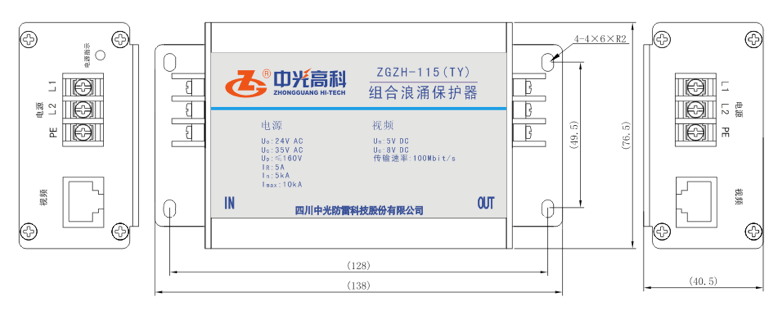

Dimensions
|
138 mm*76.5 mm*40.5 mm
|
|
Weight
|
≤ 350 g
|
|
Video part
|
|||
|
Model
|
RJ45
|
||
|
Protected objects
|
1, 2; 3, 6
|
||
|
Operating Voltage
|
5 V
|
||
|
Transmission rate
|
100 Mbit/s
|
||
|
Insertion loss
|
≤ 1 dB
|
||
|
Limit voltage 10/700 μs
|
L-L
|
≤ 30 V
|
|
|
Impact limiting voltage 1.2/50 μs; 8/20 μs
|
L-L
|
600 V; 300 A
|
≤ 70 V
|
|
L-PE
|
5 kV; 2.5 kA
|
≤ 150 V
|
|
|
Impact tolerance 1.2/50 μs; 8/20 μs
|
L-L
|
600 V; 300 A
|
|
|
L-PE
|
5 kV; 2.5 kA
|
||
|
SE-PE
|
10 kV; 5 kA
|
||
